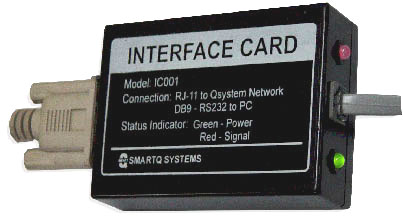

| Interface Card | ||||||
 |
||||||
| The card controls communication between PC and queue system through the PC com 1 port (support com 2 port in Windows version) | ||||||
| Specifications: | ||||||
| Size: 7.8 W x 12.0 H x 4.0 Thickness (cm.) | ||||||
| Enclosure: Black plastic casing | ||||||
| Power: 24V DC | ||||||
| System Connection: 6P-6C RJ11 modular plug to system with DB9 | ||||||
| PC Connection: Serial connection to PC | ||||||
| Status Indicator: 2 red LED to indicate power and signal status | ||||||
