STANDING QUEUE SYSTEM

---

QUEUE SYSTEMS

• Used in fast transaction and small waiting area
• Customer stand in line in-front of counters
• Counter staff will press button to call next customer
• Display flashes counter number and directional arrow

Configuration

• Dot Matrix Display with Buzzer
• Power Supply

STANDING QUEUE SYSTEM

---

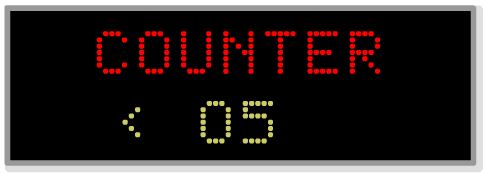

DOT MATRIX DISPLAY WITH BUZZER

Specifications:

• Size: 33.5 W x 14.5 H x 3.5 T (cm)
• Framing: Extruded Anodized Aluminum
• Power: 24 V DC
• Connection: 6P-6C RJ11 Modular Plug
• LED: DOT3/DOT5 LED Single or Dual Color
• Display: Top Row Moving Message
•     Second Row 2-digit Counter Number

STANDING QUEUE SYSTEM

---

DISPLAY CONTROLLER

STANDING QUEUE SYSTEM

---

COUNTER BUTTONS

STANDING QUEUE SYSTEM

---

POWER SUPPLY

Features:

• Design to supply regulated DC power to all devices for the queue system.
  This includes the ticket machine, interface card, displays and call terminals
• Compact and light weight

Specifications:

• Size: 12.5 W x 22.0 L x 4.5 H (cm)
• Weight: 0.8 kg
• Input: 110/220 V AC
• Output: 24 V DC
• Rating: 4.5 amp.
