PC BASED SYSTEM

---

QUEUE SYSTEMS

• An upgrade of CTQS with the addition of interface card, PC and software.
• Realtime monitor and with richer user features.
• Statistical software for queue data analysis.
• Support interfacing and integration to third party systems.

Configuration

• PC with interface card and software
• Ticket Machine
• Counter Terminals
• Main Displays
• Touchscreen Kiosk
• Power Supply

PC BASED SYSTEMS

---

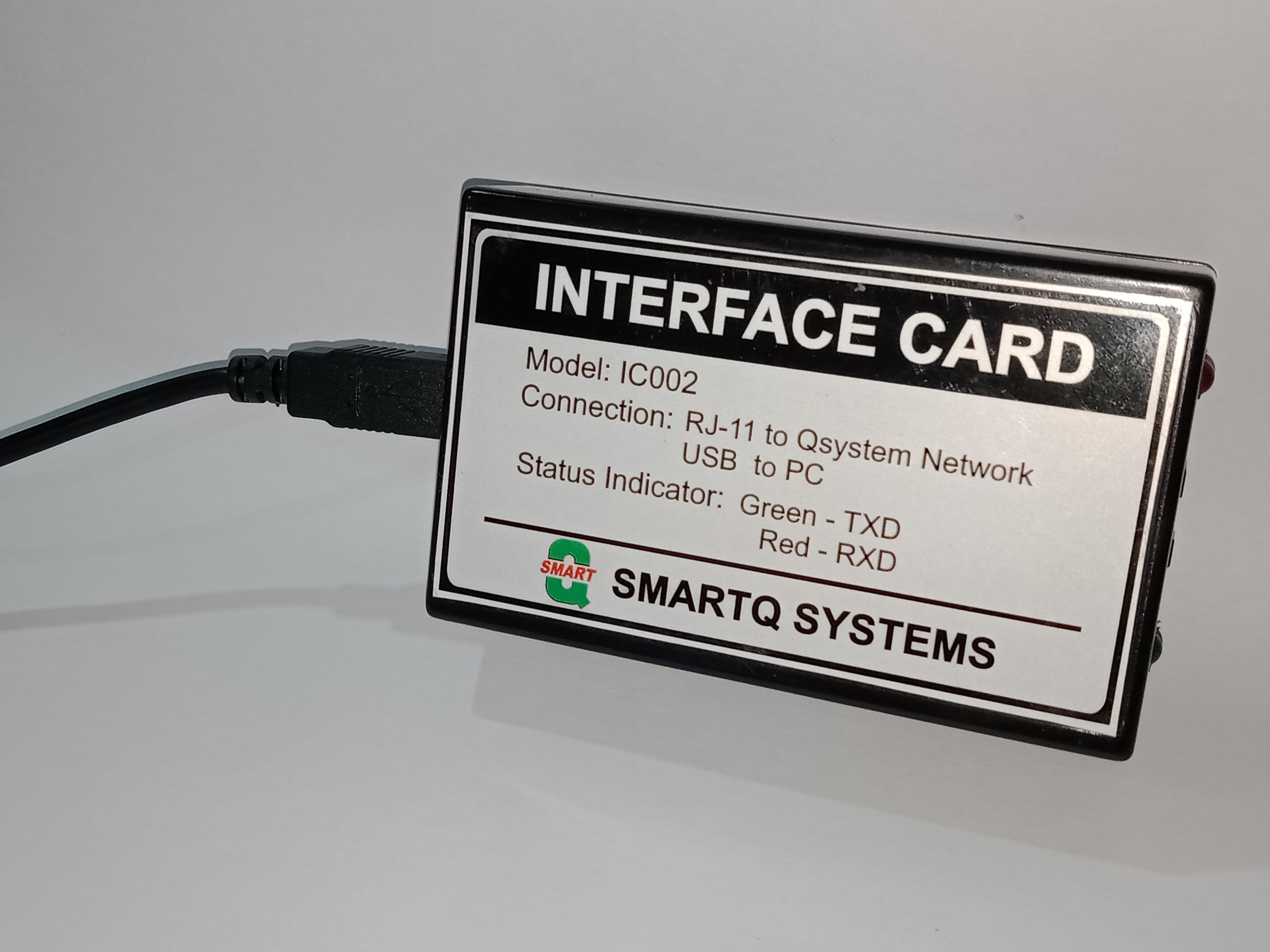

INTERFACE CARD

• Features:
•
• The card controls communication between PC and queue system through the PC COM PORTS
•
• Specifications:
•
• Size: 7.8 W x 12.0 H x 4.0 Thickness (cm.)
• Enclosure: Black plastic casing
• Power: 24 V DC
• System Connection: USB Interface cable (same in printer cable)
• PC Connection: Serial connection to PC
• Status Indicator: 2 LED indicators for power[RED] and signal[GREEN] status

PC BASED SYSTEMS

---

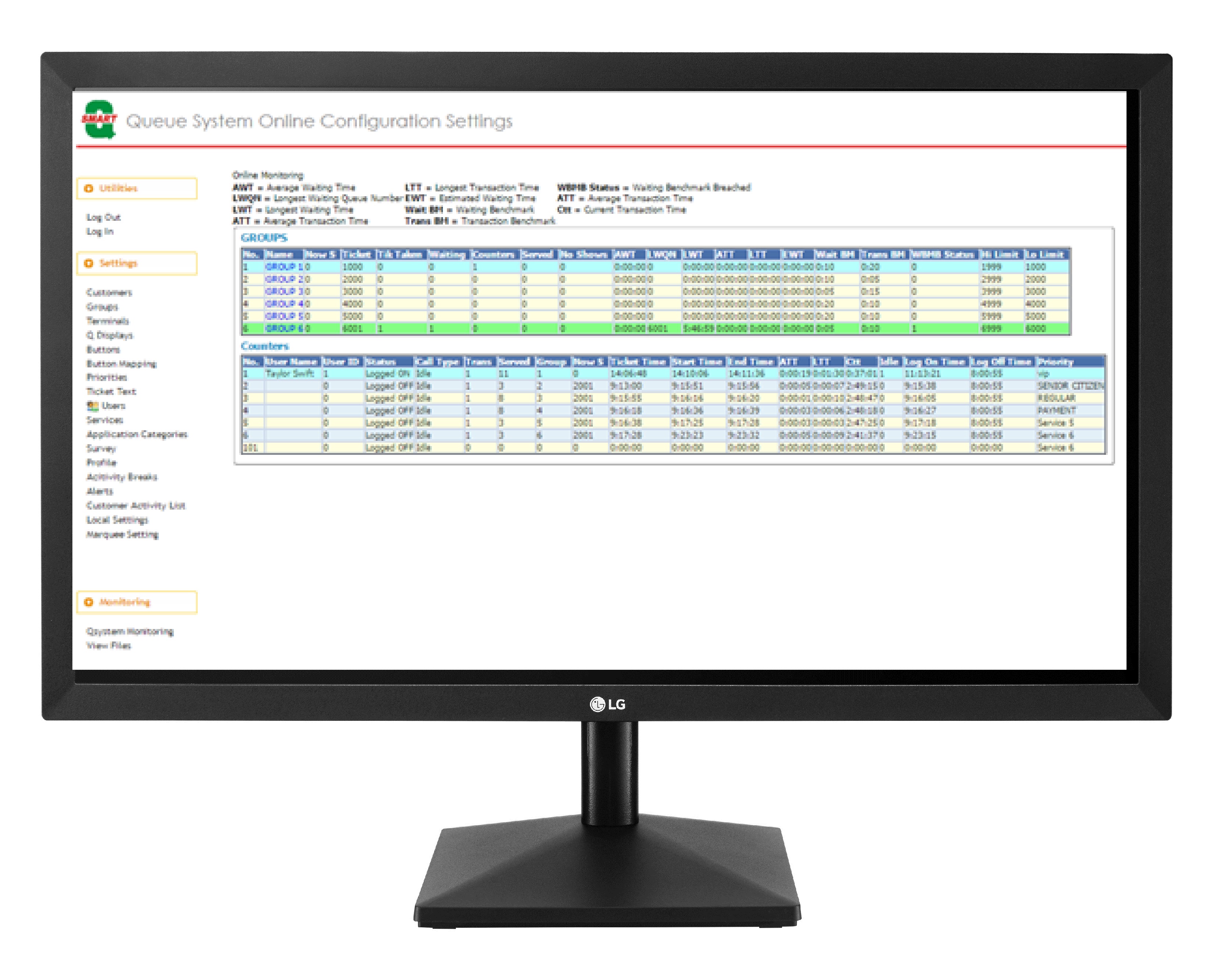

QUEUE MANAGEMENT SYSTEM

• Features:
•
• Our queueing system gives the real time information of the following for each group of service:
•
• Group Details
• Tickets Details
• Queue Number Details
• Counter Details
• Transaction & Waiting Time
• and others
•
• Other supported features:
•
• Queue Displays in LED TV/Monitor
• Report Generation & Consolidation
• Online - Realtime Monitoring
• Alerts & SMS Features
• Integration of Queue Systems to other systems
•

PC BASED SYSTEMS

---

TICKETING MACHINE

• TM 220
•
• Fast speed thermal printer with auto cutter
•
• Specifications:
•
• Size: 17 W x 25 L x 11 H (cm)
• Weight: 1.5 kg.
• Power: 24 V DC
• Color: Light Gray
• Power On Indicator LED
• Single Light Indicator LED
• Paper Out Indicator LED
• Thermal Paper: 78 mm. width

• Features:
•
• With its built-in CPU it can work as a standalone ticket machine controlling the queue system
• Easily converted to operate in PC mode through dip switch setting
• Power shutdown will not affect the system. All settings are restored when power is back
• Supports 3 digit or 4 digit queue number
• Support multiple ticket machines for both standalone and PC mode
• Up to 6 service type buttons. For PC based system, expandable to 15 buttons using keypad device
• Prints heading text, logo, queue number, service name, date/time and any other customized message text
• Allows issuance of tickets in multiple copies

PC BASED SYSTEM

---

COUNTER TERMINALS

• CT 210
•
• For calling of numbers to display
• 6 digit LCD, 16 button membrane keypad
• Covers all user requested features
• Easy connection using RJ11
• Lightweight ABS plastic
•
• Specifications:
•
• Size: 10.3 W x 16.5 L x 4.5 H (cm)
• Power: 24 V DC
• Color: Light Gray
• Connection: 6P-6C RJ11 Modular Plug

• Features:
•
• Standard functions are: sequential call, random call, repeat call, recall, query number of waiting customers, change service group, transfer customers to other types of services, enter number of transactions.
• For standalone system, terminal can be used to program system settings of ticket machine.
• With PC based system, it supports user ID, log-on/log-off to capture statistics of users and counters; no show, alert call, store, view, and delete stored numbers, capture service groups.

PC BASED SYSTEM

---

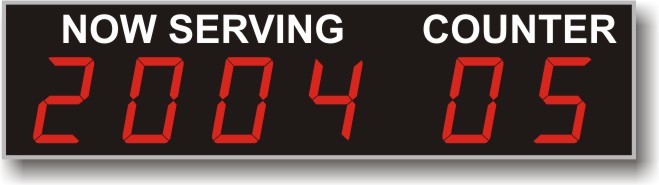

MAIN DISPLAYS

• Main Display MD4DXS
•
• 4 digit queue number and 2 digit counter number
• 4 inches red LED's
• Multi-tier display available
• Size: 67.3 cm. x 19 cm.
•



• Main Display MD2DXS
•
• 4 digit queue number and 2 digit counter number
• 2.25 inches red LED's
• Multi-tier display available
• Size: 40 cm. x 13.9 cm.

PC BASED SYSTEM

---

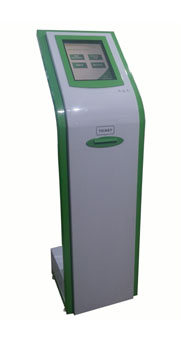

TOUCHSCREEN KIOSK

• TKS513-10
•
• Features:
•
• TKS513-10 use as Main Server PC for the queueing system.
• It is also a ticketing machine like TM220.
•
• Other supported features:
•
• TKS513-10 has a motherboard (included the RAM & processor), harddisk drives, operating system, power supply, ticket printer and touchscreen monitor
• Can customize the kiosk based on the given requirements
• Can integrate with the other systems
•

PC BASED SYSTEM

---

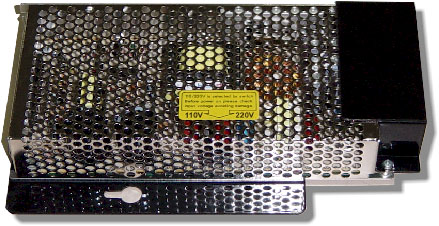

POWER SUPPLY

• Features:
•
• Design to supply regulated DC power to all devices for the queue system.
  This includes the ticket machine, interface card, displays and call terminals
• Compact and light weight
•
• Specifications:
•
• Size: 12.5 W x 22.0 L x 4.5 H (cm)
• Weight: 0.8 kg
• Input: 110/220 V AC
• Output: 24 V DC
• Rating: 4.5 amp.
